Capacitor End Seals

Capacitor End Seals 1 | Capacitor End Seals 2

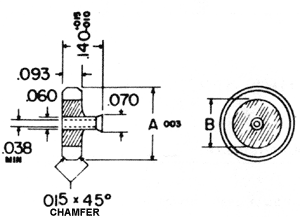

Capacitor End Seals: CCF - 060 Series
Capacitor End Seals CCF - 060 Series

PART
A DIM
B DIM
215-CCF-060
0.215
0.161
292-CCF-060
0.292
0.228
377-CCF-060
0.377
0.302

Capacitor End Seals: CDF - 075 Series
Capacitor End Seals CDF - 075 Series

PART
A DIM
B DIM
C DIM
212-CDP-060
0.212
0.171
0.140
258-CDP-060
0.258
0.213
0.168
265-CDP-060
0.265
0.226
0.189
292-CDP-060
0.292
0.250
0.205
326-CDP-060
0.326
0.226
0.189
377-CDP-060
0.377
0.337
0.302
535-CDP-060
0.535
0.496
0.389
643-CDP-060
0.643
0.496
0.389
723-CDP-060
0.723
0.496
0.389
962-CDP-060
0.962
0.496
0.389

Capacitor End Seals: CCP - 075 Series
Capacitor End Seals CCP - 075 Series

PART
A DIM
B DIM
215-CCP-075
0.215
0.161
292-CCP-075
0.292
0.228
377-CCP-075
0.377
0.302

Capacitor End Seals: CDF - 075 Series
Capacitor End Seals CDF - 075 Series

PART
A DIM
B DIM
C DIM
377-CDF-075
0.377
0.337
0.302
535-CDF-075
0.535
0.496
0.389
643-CDF-075
0.643
0.496
0.389
723-CDF-075
0.723
0.496
0.389
962-CDF-075
0.962
0.496
0.389

Capacitor End Seals: CDF - 060 Series
Capacitor End Seals CDF - 060 Series

PART
A DIM
B DIM
C DIM
212-CDF-060
0.212
0.171
0.140
258-CDF-060
0.258
0.213
0.168
265-CDF-060
0.265
0.226
0.189
292-CDF-060
0.292
0.250
0.205
326-CDF-060
0.326
0.226
0.189
377-CDF-060
0.377
0.337
0.302
535-CDF-060
0.535
0.496
0.389
643-CDF-060
0.643
0.496
0.389
723-CDF-060
0.723
0.496
0.389
962-CDF-060
0.962
0.496
0.389

Capacitor End Seals: CDL 1 - 060 Series
Capacitor End Seals CDL 1 - 060 Series

PART
A DIM
B DIM
C DIM
212-CDL 1-060
0.212
0.171
0.14
258-CDL 1-060
0.258
0.213
0.168
265-CDL 1-060
0.265
0.226
0.189
292-CDL 1-060
0.292
0.25
0.205
326-CDL 1-060
0.326
0.226
0.189
377-CDL 1-060
0.377
0.337
0.302
535-CDL 1-060
0.535
0.496
0.389
643-CDL 1-060
0.643
0.496
0.389
723-CDL 1-060
0.723
0.496
0.389
962-CDL 1-060
0.962
0.496
0.389

Tolerances:

Unless otherwise specified, tolerances on fractional dimensions are + .015 and on decimal dimensions are +.005.

Lug Types:

Parts with tube lugs are available in standard angles from 180° flat to 90° perpendicular.

Finish:

Hot tin (60/40) is the standard finish for these parts although other finishes are available on request.

Inspection:

All characteristics are inspected to a 1‰ AQL, level 8, multiple sample, in accordance with MIL-STD-105D.

Customer Specifications:

Customer are requested to submit any additional specifications they may require on their parts in order to guarantee compliance to all requirements.

Types Not Listed:

Numerous other standard sizes not shown here are available in stock.
